Rubber Type Disc Harrow – GRAND CYRUS SERIES

Rubber Type Disc Harrow – GRAND CYRUS SERIES

What is a Disc Harrow and what does it use for?

Disking is a farm management practice used for soil preparation. It usually follows plowing, either deep or shallow. While plowing cuts, granulates, and inverts the soil, creating furrows and ridges, disking breaks up clods and surface crusts. Additionally, disking improves soil granulation and surface uniformity. As one of the most important soil preparation practices, disking is beneficial for provoking the weed growth and destroys already emerged weeds. It also assists in the important task of incorporating crop residues into the soil.

A disc harrow is a crucial farm equipment used to prepare soil for planting or sowing by breaking up the clods and surface crusts. It thus improves soil granulation and destroys the weeds. This equipment makes well-tilled soil for healthier plants and better yields.

Novatar Rubber-Type Disc Harrow is a soil tillage machine used to till the soil where crops are to be planted. Disc-Harrow is also used to make surface tillage, seedbed preparation, mixing organic and inorganic fertilizers to the soil, breaking the hard surface on the soil of the field, chop up unwanted weeds or crop remainders.

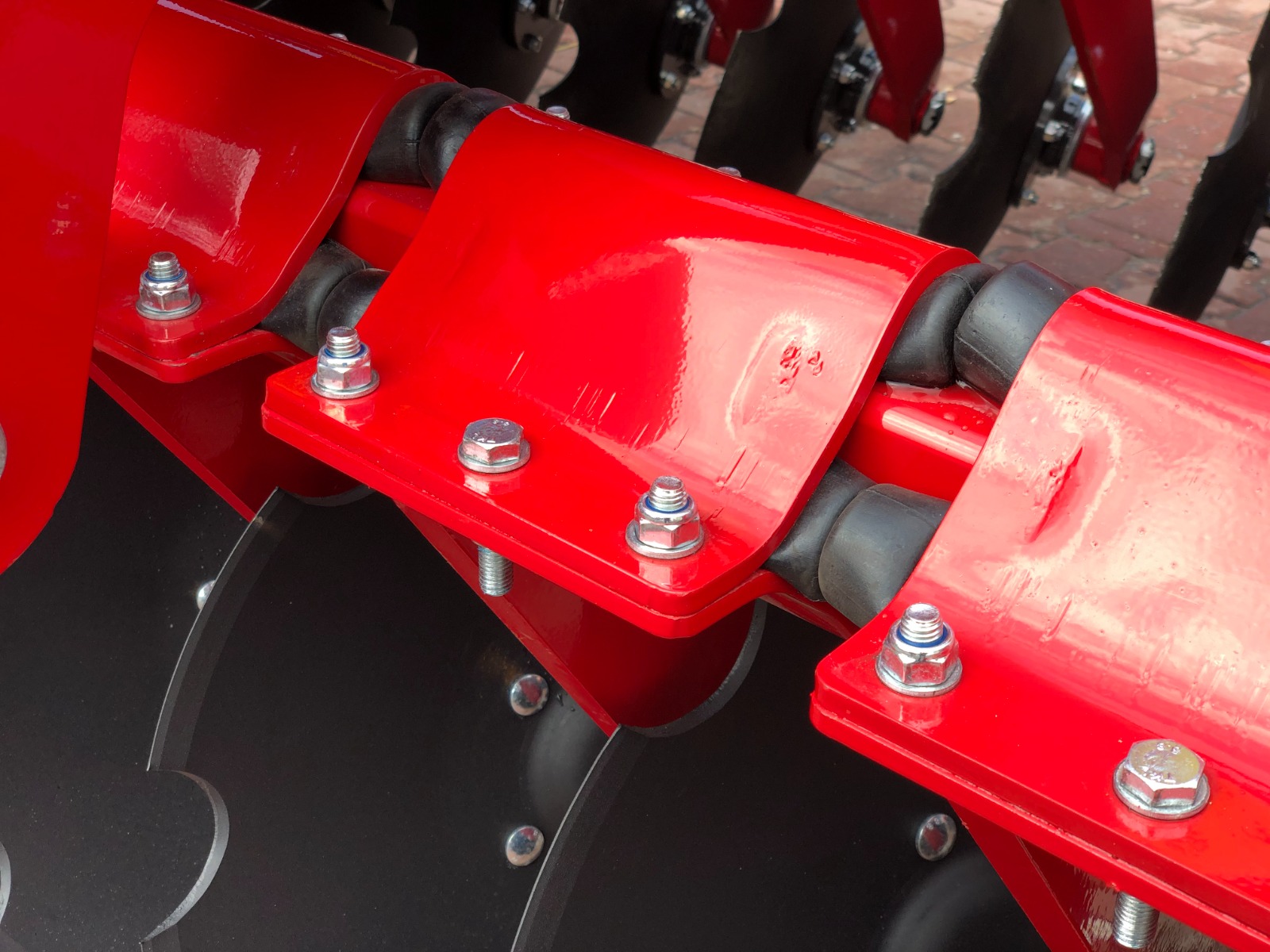

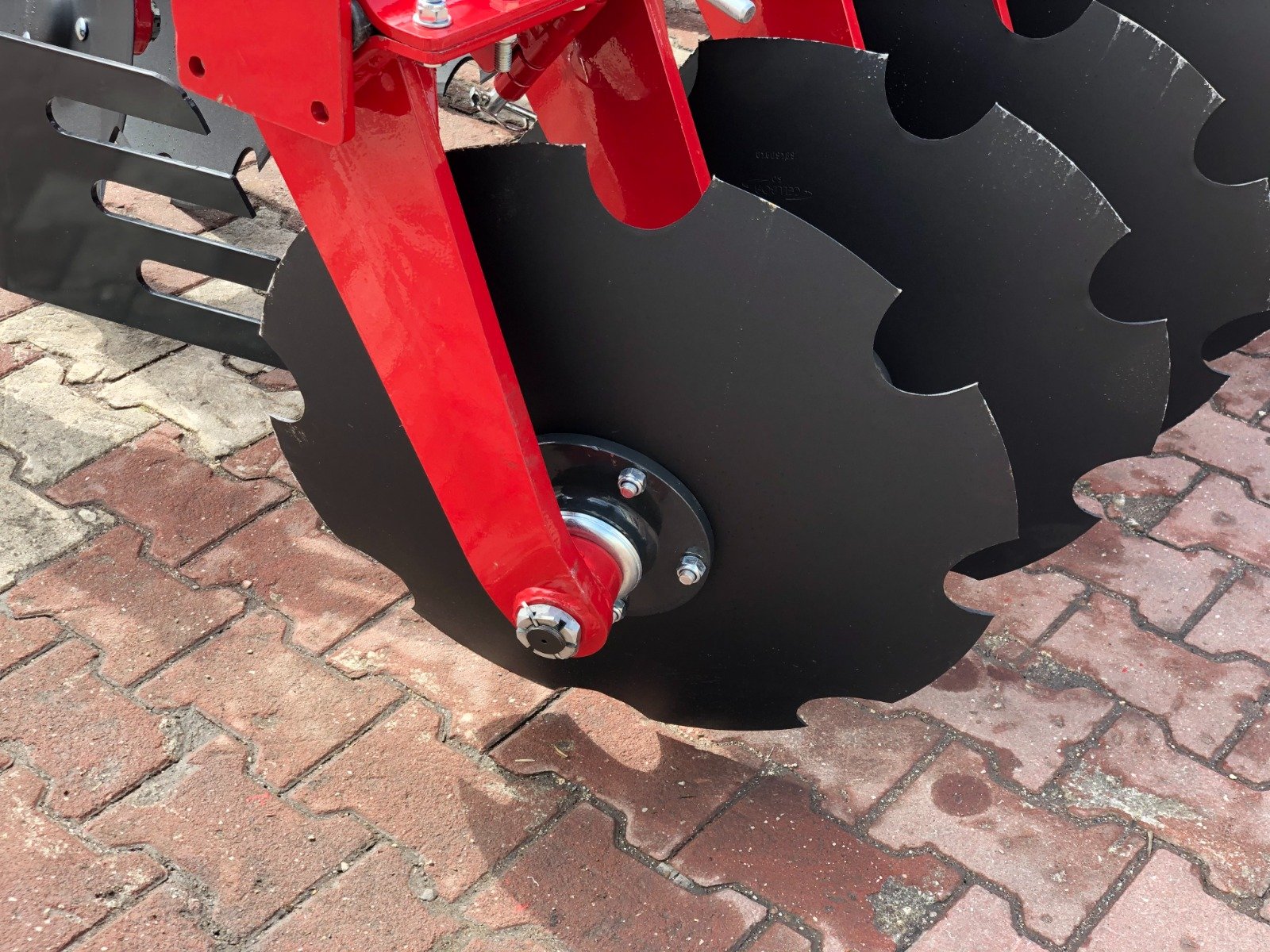

The serrated concave discs (560,610 mm diameter), which are supported by maintenance-free angular ball bearings, form the basis for the outstanding quality of work produced by this highly durable implement. The Novatar discs are made out of high-quality steel. The working parts of the Disc-harrow are equipped with protective rubber, which increases their durability and makes them less susceptible to damage, especially when working on stony soils.

It’s the best machine for soil processing that becomes important recently. It is possible with this machine to mix crumbling plant parts in the best way and to become useful faster for the plant, consequently bringing in biological balance of the soil again.

Category:
GRAND-CYRUS DISC DIMATER
(CM)
DISTANCE BETWEEN DISC
(CM)
WORKING WIDTH
(CM)
WORKING DEPTH
(MM)
REQUIRED HP
(HP)
GRAND CYRUS-16 51/57/62 25 200 250 50-60
GRAND CYRUS-18 51/57/62 25 225 250 60-70
GRAND CYRUS-20 51/57/62 25 250 250 70-80
GRAND CYRUS-22 51/57/62 25 275 250 80-90
GRAND CYRUS-24 51/57/62 25 300 250 90-100
GRAND CYRUS-26 51/57/62 25 325 250 100-110
GRAND CYRUS-28 51/57/62 25 350 250 110-130
GRAND CYRUS-32 51/57/62 400 250 120-150
