Coulter Tine Mechanical Seed Planter – DARCY COULTER

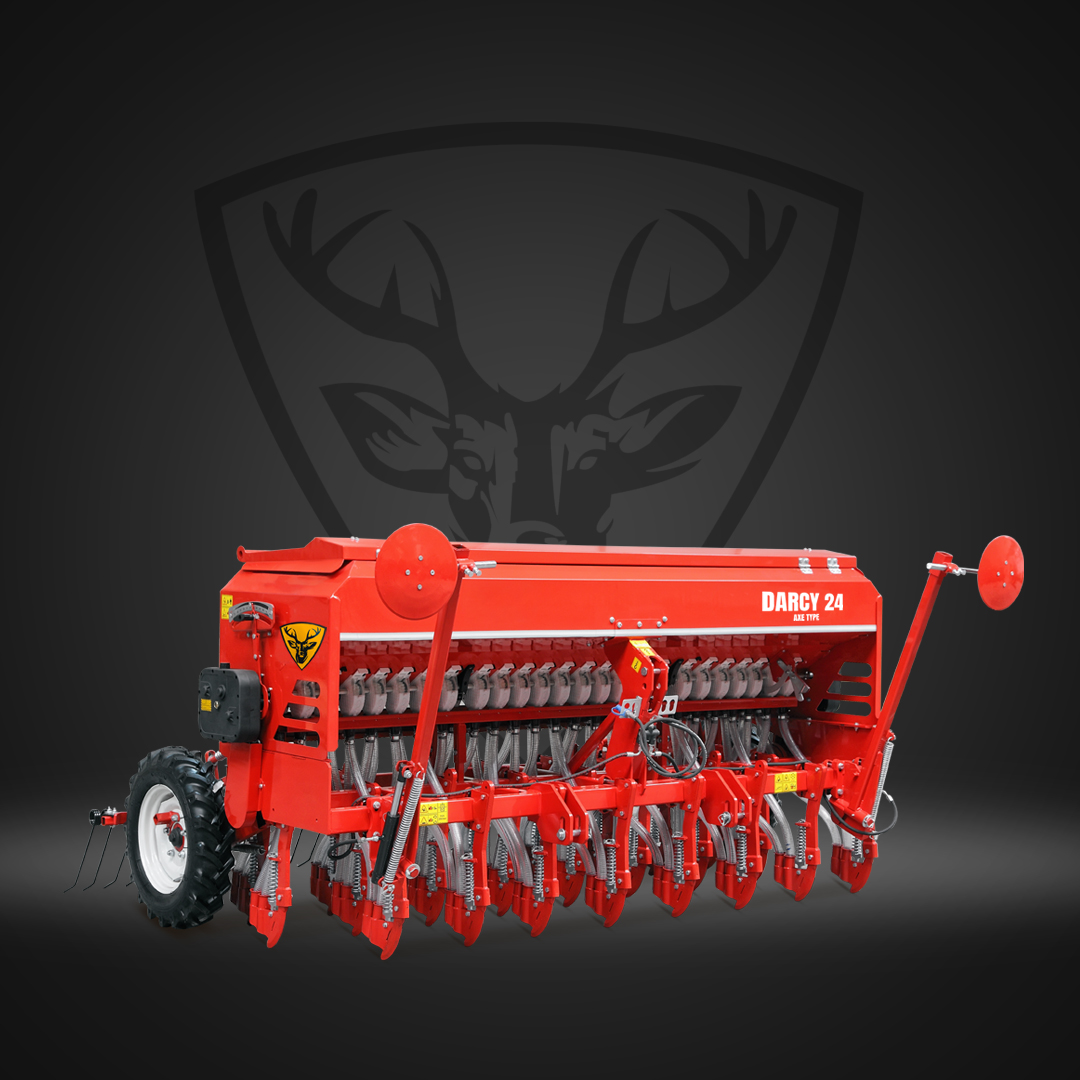

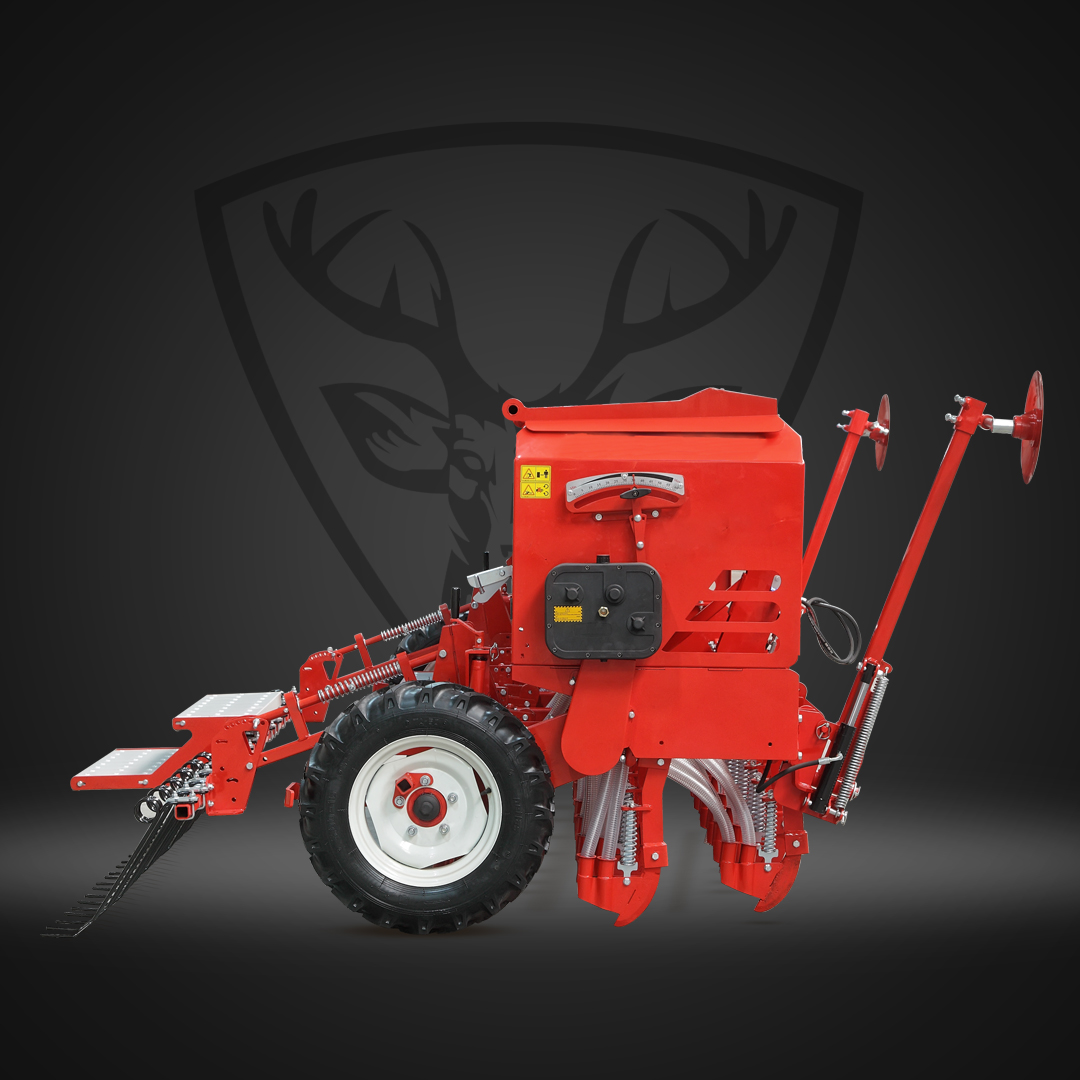

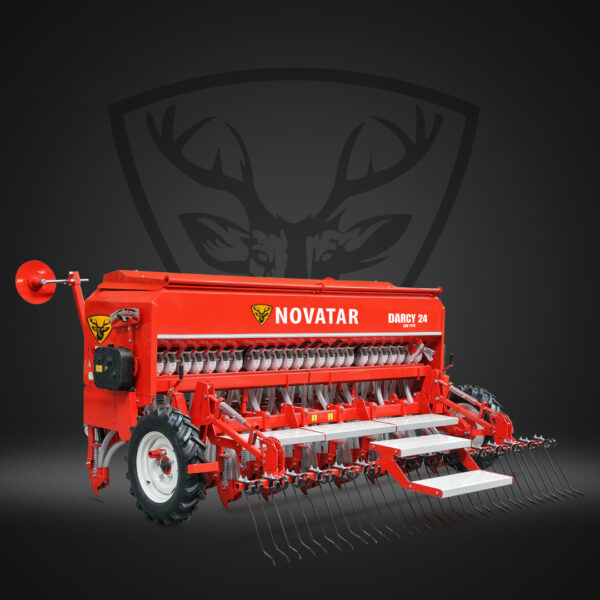

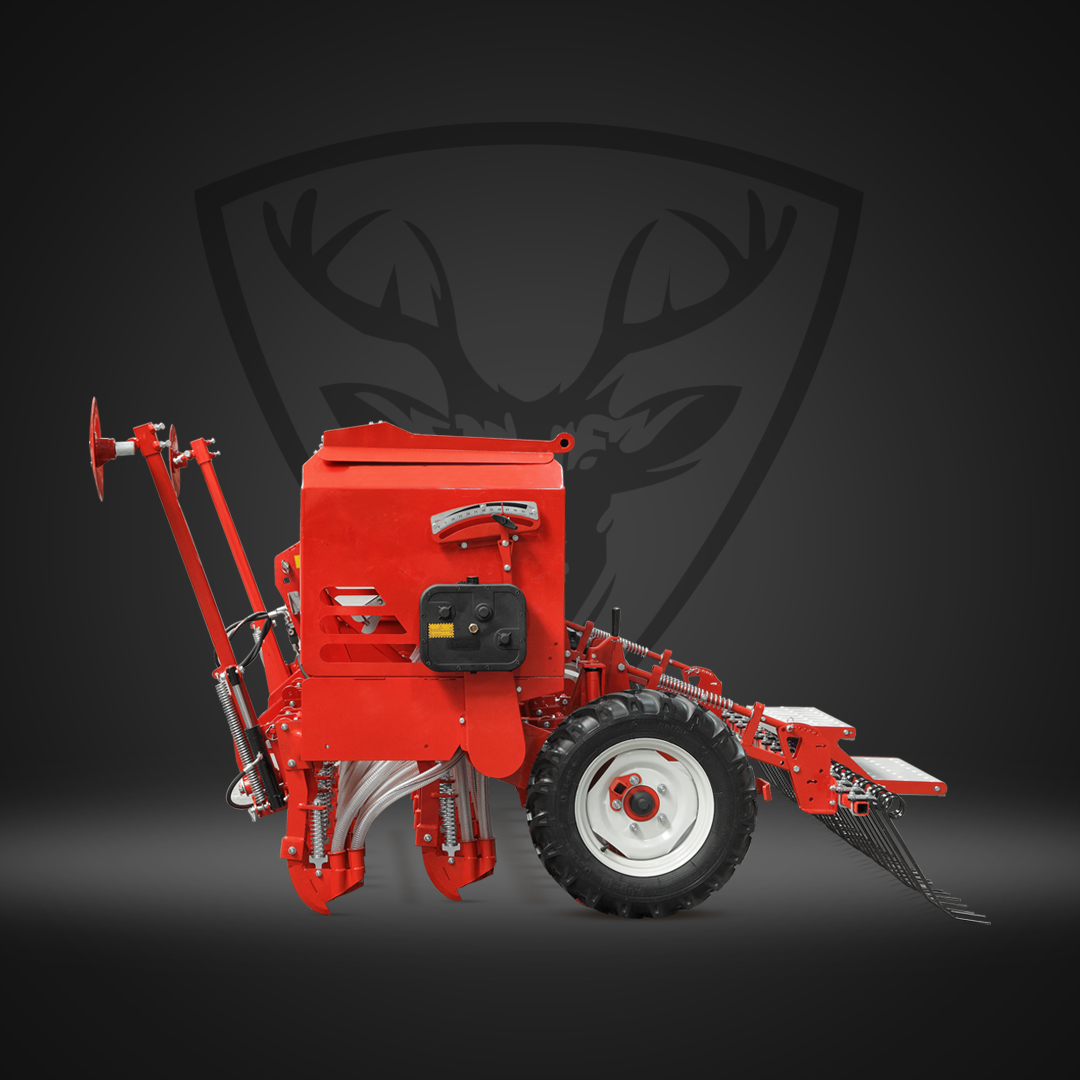

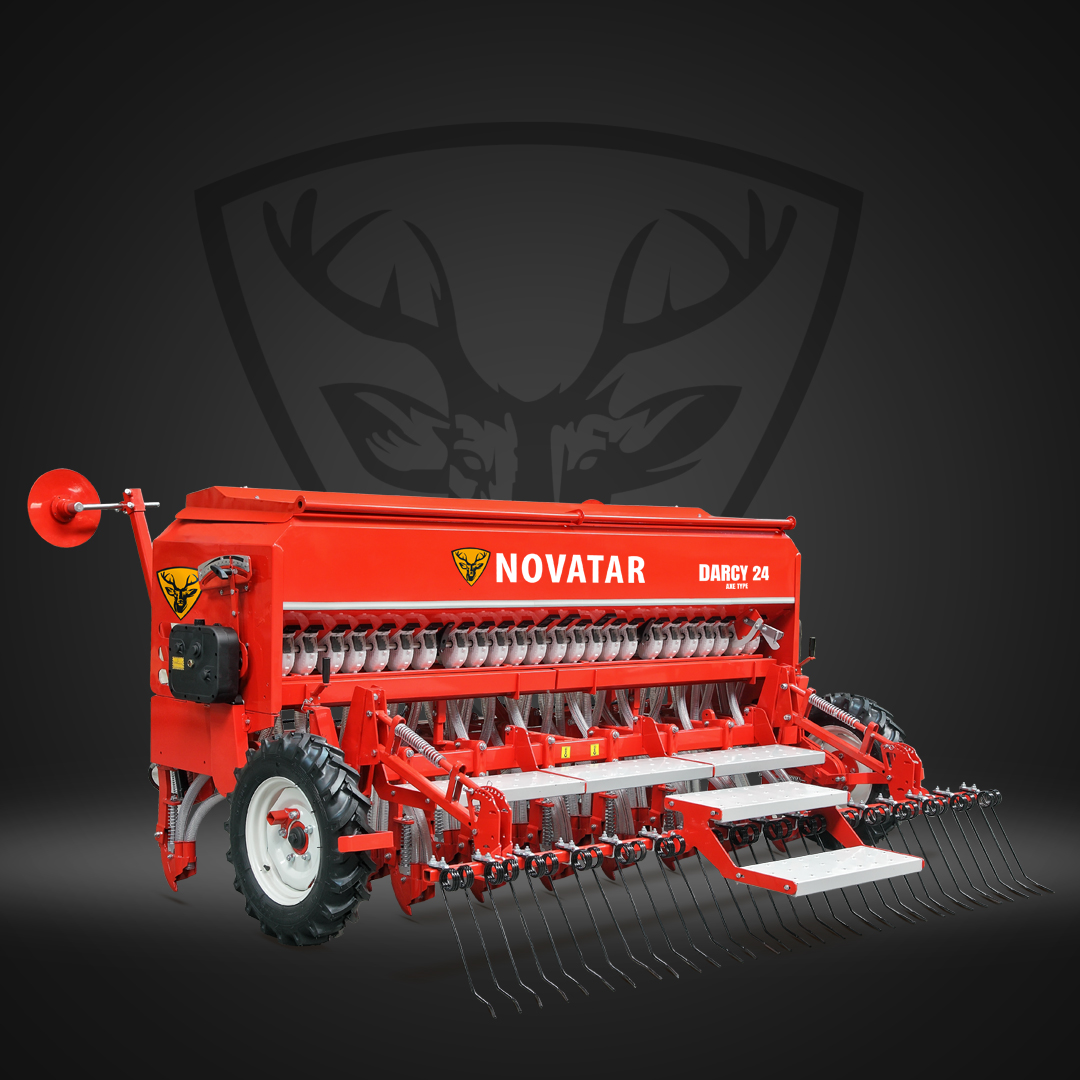

DARCY 24 AXE TYPE SEEDER is a mechanical seeder equipped with colter tines and a gearbox that can leave seeds and fertilizer at the desired depth, in equal numbers and rows. We offer the best solution for precise sowing on flat and sloping lands thanks to its colter sowing feet with DARCY Mechanical Seeder.

End spring legs are made of cast and are sealed with plate fins on both sides. Fertilizer and seed pass the hose between flaps and lay on the soil. Because resultant force forces the leg to come out of the soil due to the wide penetration angle, sowing depth can be increased with additional loads. This feature shows superiority over other types of legs. A good seedbed is prepared. DARCY 24 AXE TYPE SEEDER is a mechanical seeder equipped with colter tines and a gearbox that can leave seeds and fertilizer at the desired depth, in equal numbers and rows. We offer the best solution for precise sowing on flat and sloping lands thanks to its colter sowing feet with DARCY 24 SEEDER.

Category:
TECHNICAL SPECIFICATIONS UNIT DARCY 16 DARCY 18 DARCY 20 DARCY 22 DARCY 24 DARCY 28 DARCY 32
Number Of leg pcs 16 18 20 22 24 28 32
Inter-Row Distance mm 125 mm 125 mm 125 mm 125 mm 125 mm 125 mm 125 mm
Working Width mm 2000 2250 2500 3750 3000 3500 4000
Handling Width mm 2235 2485 2735 2985 3135 3735 4235
Handling Height mm 1500 1500 1500 1500 1500 1500 1500
Seed Tank Volume lt 260 300 340 360 400 440 465
Fertilizer Tank Volume lt 240 270 305 340 370 400 425
Tank Volume Without Fertilizer lt 520 585 650 715 785 945 1020
Size Of Tire inch 500-12 500-12 500-12 600-16 600-16 600-16 600-16
Operation Speed km/h 5*8 5*8 5*8 5*8 5*8 5*8 5*8
Weight kg 720 750 770 790 815 1050 1150
Required Power hp 40-50 50-60 60-70 70-80 80-90 100-110 110-120
