S Type Tiller – Foldable Cultivator

S Type Tiller – Foldable Cultivator

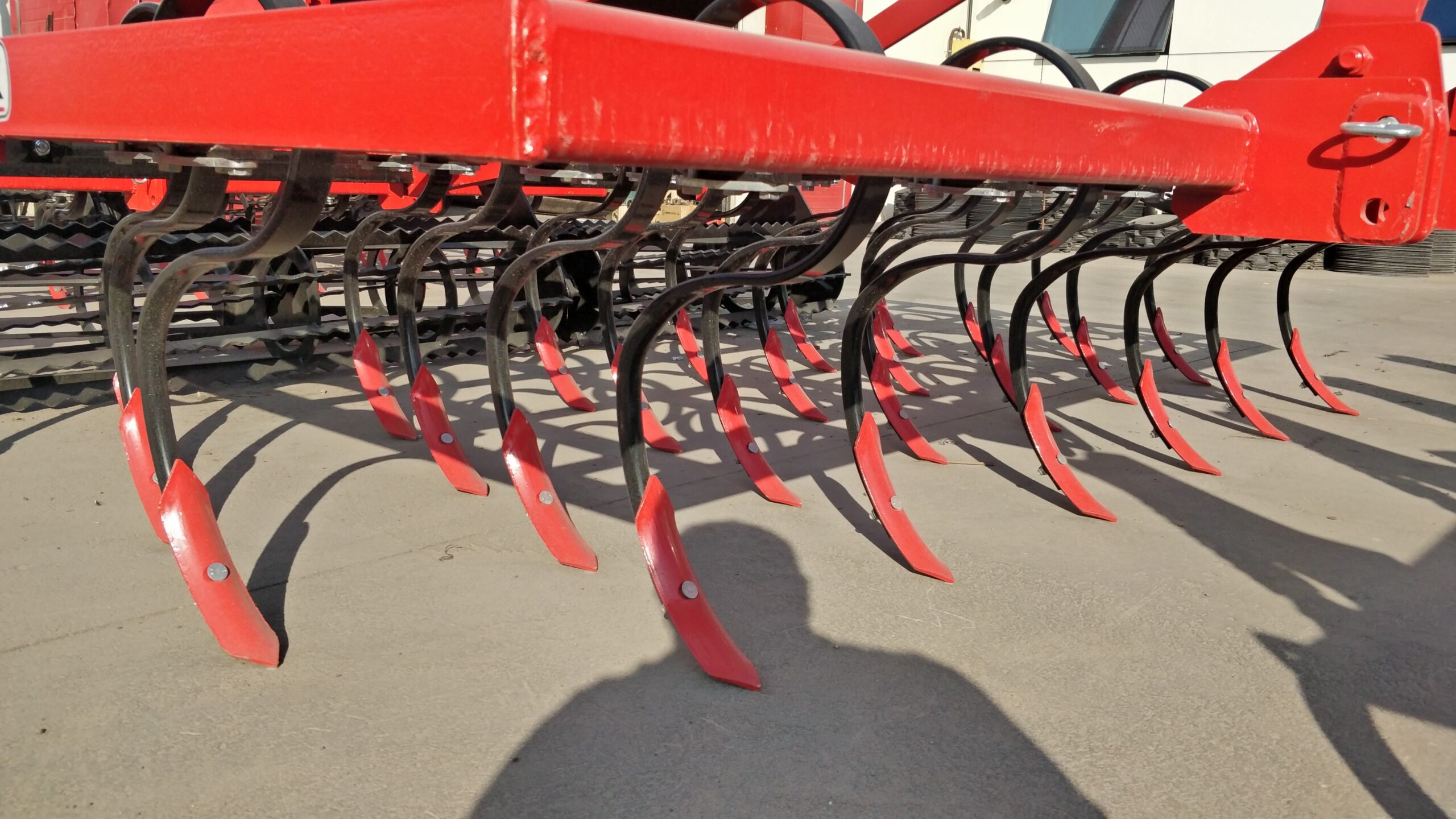

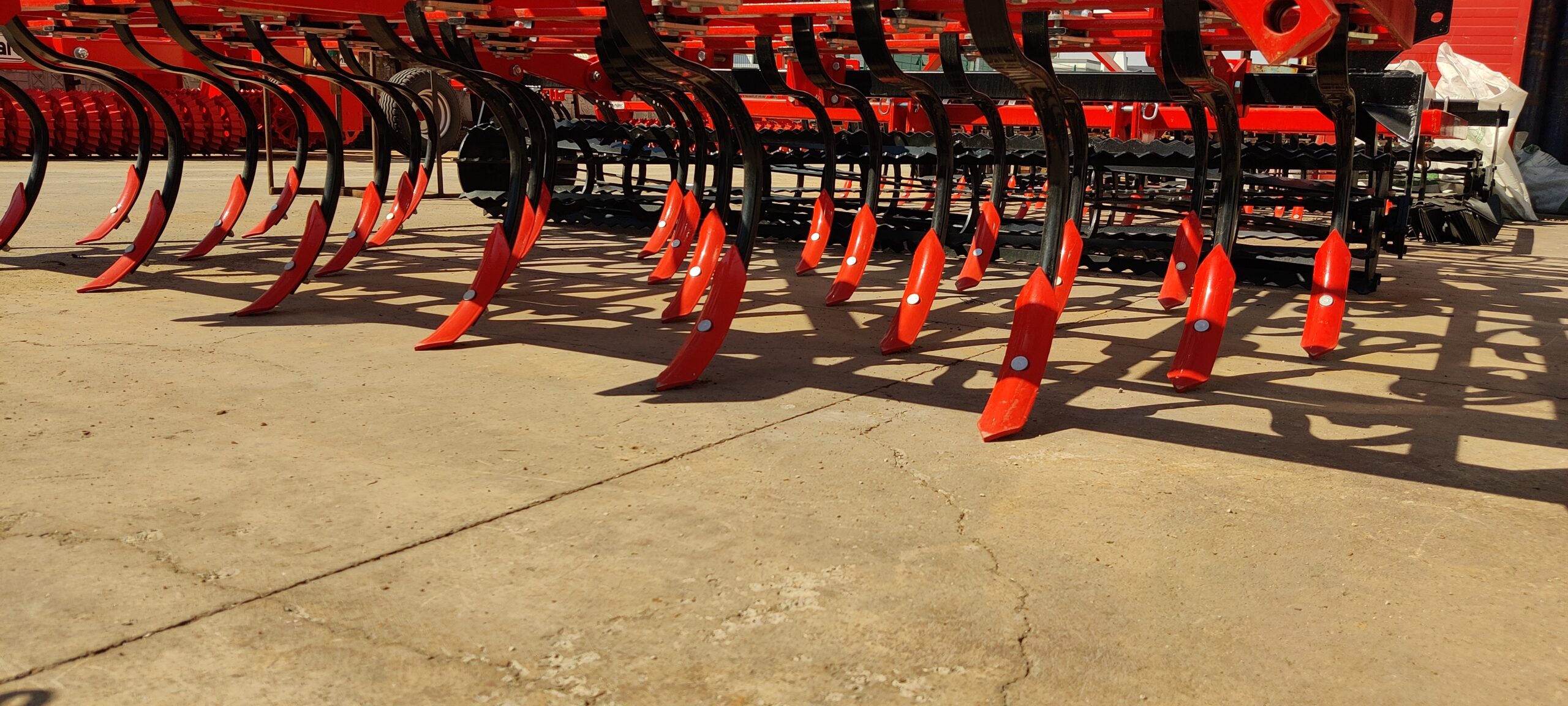

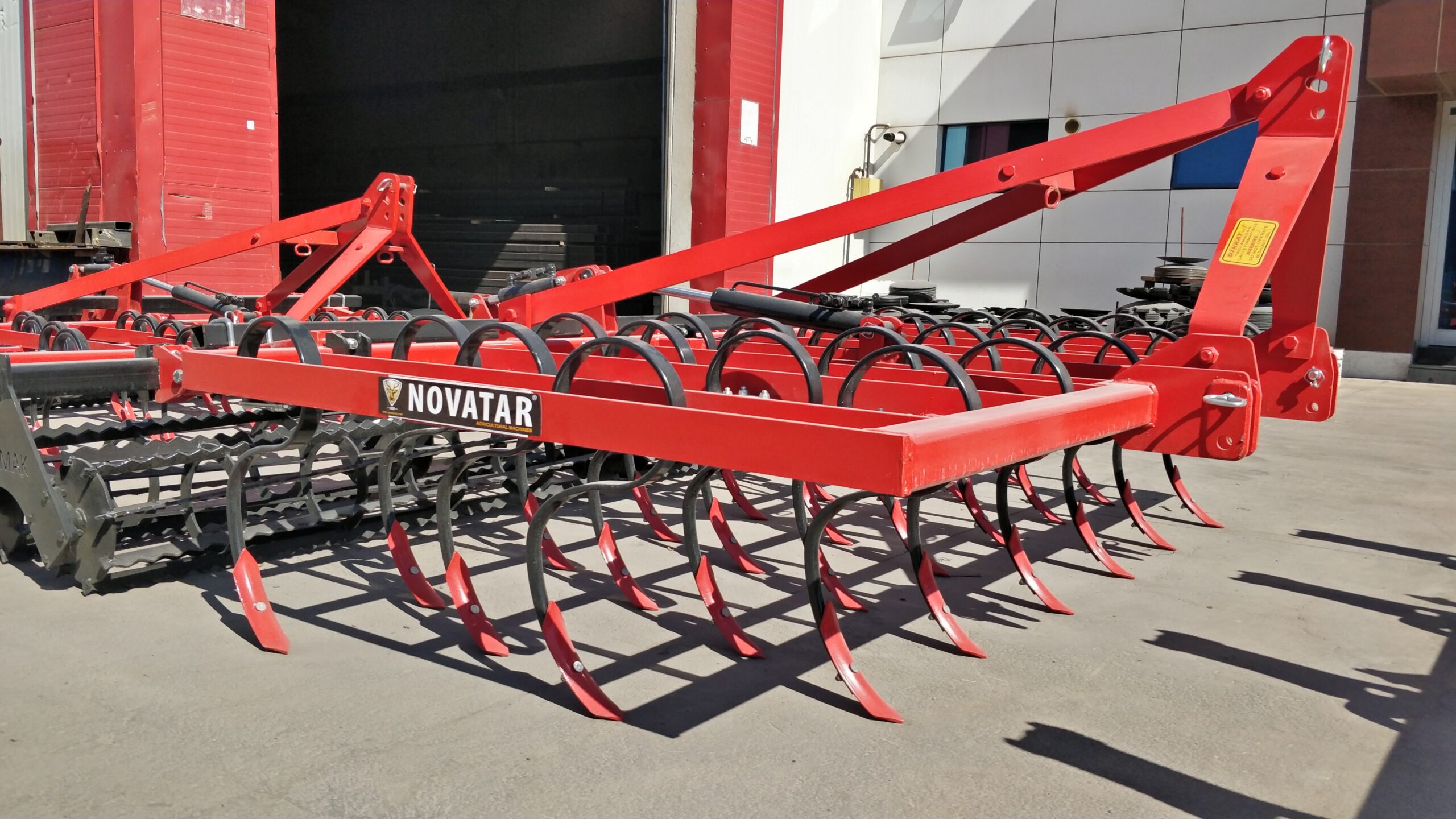

S Type Cultivator is a soil tillage machine used to prepare a seedbed with its S-type tines made from spiral legged. By S type cultivator you can prepare very productive soil. It can be manufactured with a roller.

Cultivator with S-type tines is used in not well cultivated rough and stony soil conditions. Operating organs have springs, they present a well-breaking effect through the vibration. They bring the roots into the surface by pulling them into fields with weeds.

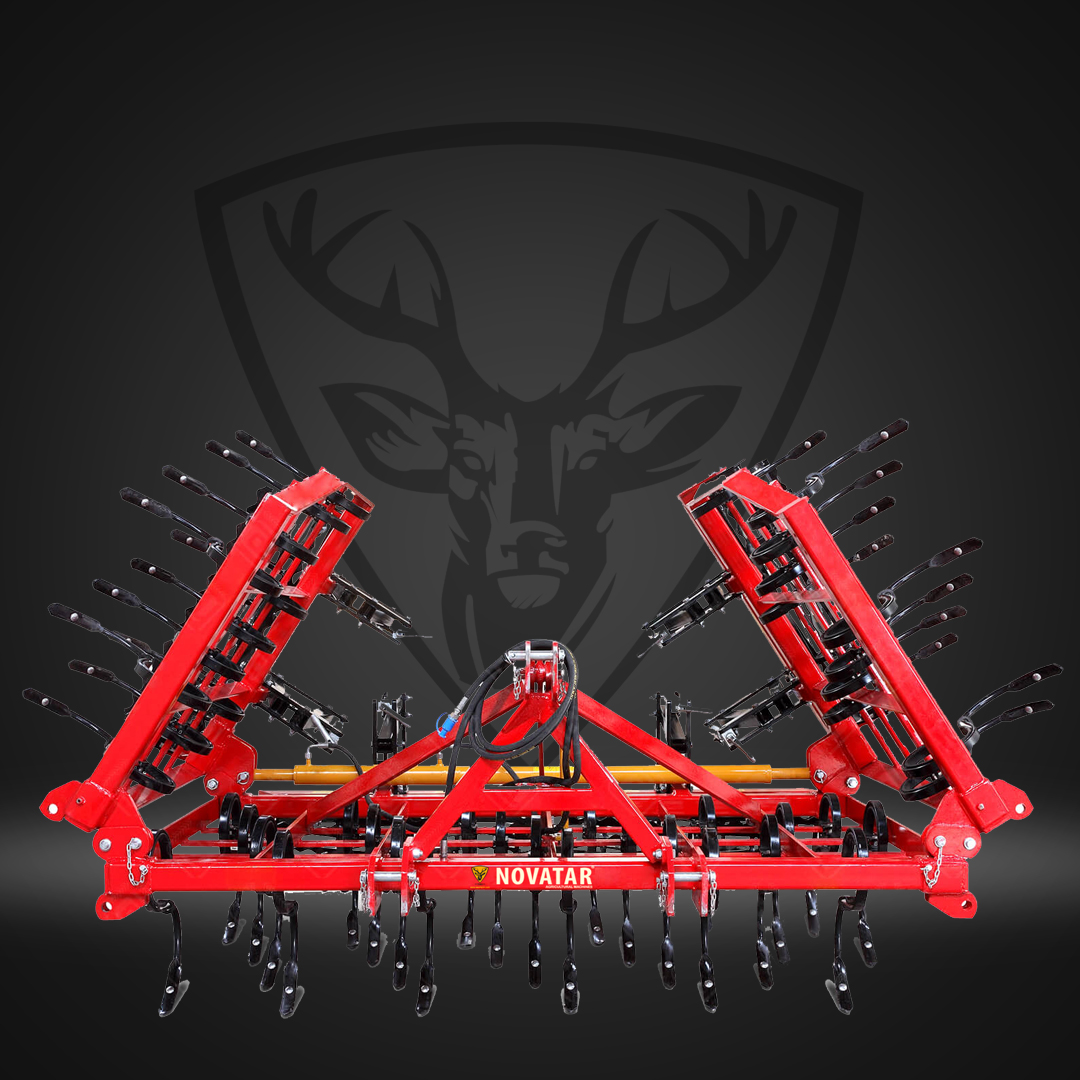

S-Tine Foldable Tiller is a secondary soil tillage machine is mounted to the tractor’s hydraulic lifting unit and universal three-point linkage system, a hydraulically mounted type machine. Furthermore, transportation to the field can be easily done thanks to its foldable feature. We use hgh quality spiral spring foot which are made of special high-strength spring steel. For preparing the soil for the sowing process single or double row rolls also could be attachable to the back of the machine.

Category:
FOLDABLE CULTIVATOR UNIT SKX25 SKX27 SKX29 SKX31 SKX33 SKX35
Foot Quantity Pcs 35 40 45 50 55 60
Foot Size mm 45X12 45X12 45X12 45X12 45X12 45X12
Working Width mm 3600 4100 4600 5100 5600 6100
Length Cm 1500 1500 1500 1500 1500 1500
Height Cm 1350 1350 1350 1350 1350 1350
Necessary Power HP 80-100 100-115 115-130 130-145 145-160 160+
Weight Kg 1250 1420 1580 1740 1890 2040
